Reactor in Pipeline Pilot

Virtual reaction processing

• Supports smart reaction rules to produce synthetically feasible products

• Sequential or combinatorial mode

• Product or reaction output

• Select products to include in output

• Use tagger components to distinguish inputs of multi-reactant reactions

• Synthesis code generation

• Output reaction mapping

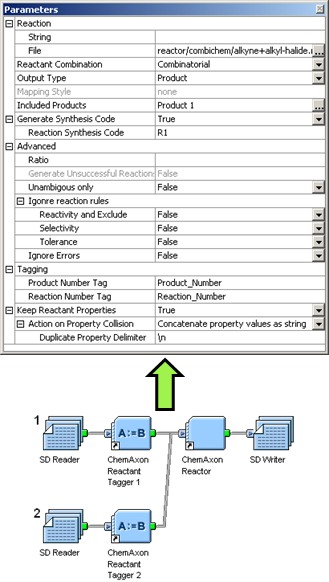

• Advanced options:

– Unambiguous only

– Ignore rules:

• Reactivity and Exclude

• Selectivity

• Tolerance

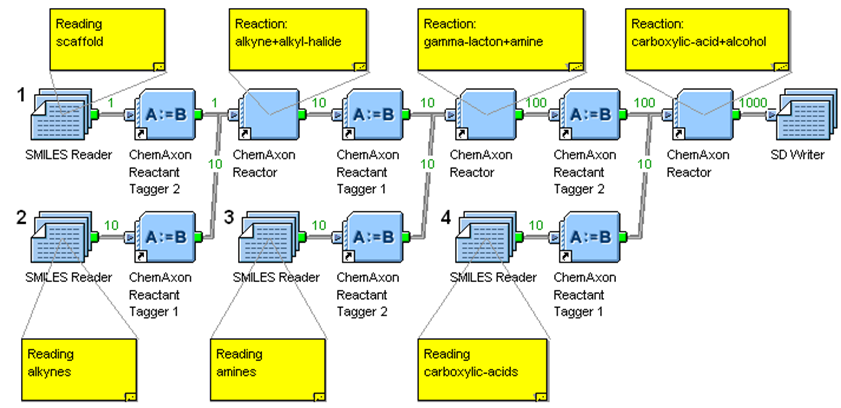

Combinatorial Reactor Example
