Chemistry exercise types

Zosimos offers massive support for creating exercises with chemical structures and reactions. Explore the table below to find out more about our great chemistry that will help you to make chemistry learning more fun with interactive quizzes.

Topic	Exercise	Example	Question Use	Answer Use
Molecule representations	Chemical formula	C6H12O6		Planned later
	Structural formula
	Lewis structure
	Polyatomic ions
	Resonance structures
	Polymers
	R-group representation
Nomenclature	IUPAC name	2-Acetoxybenzoic acid

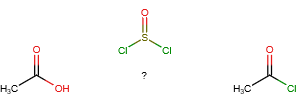

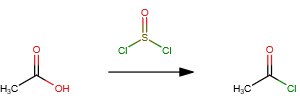

Reactions	Reaction drawing

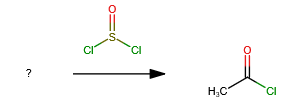

	Reactant drawing
	Reagent drawing			Done for reagents in structural formPlanned later for reagents in text form
	Product drawing
	Arrow drawing
	Multistep reactions			Planned later
Stoichiometry	Balanced equations			Planned later
Mechanisms	Curly arrow
Stereochemistry	Dash-wedge structure
	E/Z isomer
	Newman projection			Planned later
	Chair projection			Planned later
	Fisher projection			Planned later
	Haworth projection			Planned later

Have you run into an exercise that is not supported yet? Please drop us a line to zosimos-support@chemaxon.com. We would be happy to learn more about your teaching needs.

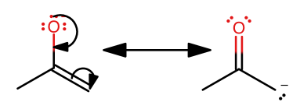

Reaction mechanism and resonances

The tool for drawing the curved arrows in reaction mechanism and resonances is the electron flow arrow on the left toolbar of the drawing tool.

There are two options to draw the curved arrows when the teacher creates new exercises:

• Direct arrow option: simple electron pushing representation with a curved arrow.
• Show forming bond option: complex electron pushing representation with a curved arrow and a dotted line is drawn to the forming bond.

These options are available under the Exercise settings button for teachers when creating new exercises.

The default option is always the Direct arrow drawing style when creating a new exercise. The teacher needs to set the curved arrow preferences to use the Show forming bond style in each exercise on demand.
Exercises in duplicated quizzes will keep their original settings.
The students' drawing tool is set to the same curved arrow drawing style that the teacher set in the Exercise settings.
