Quick Start Guide¶
Dealing with failed submissions
New compound (reviewing matches)
Compound Registration is a tool that uses a web browser interface for registering chemical structures. Structures - or compounds in general - are being stored in a tree-like representation in three layers: parent, version and lot:
- Parent : is a neutral form of the chemical structure without any isotope, charge, counter-ion, or salt/solvate.
- Version : a molecule (neutral or charged) with its isotope, counter-ion or salt/solvate.
- Lot : an occurrence of the compound in the company, generally a physical sample.
 |
|---|

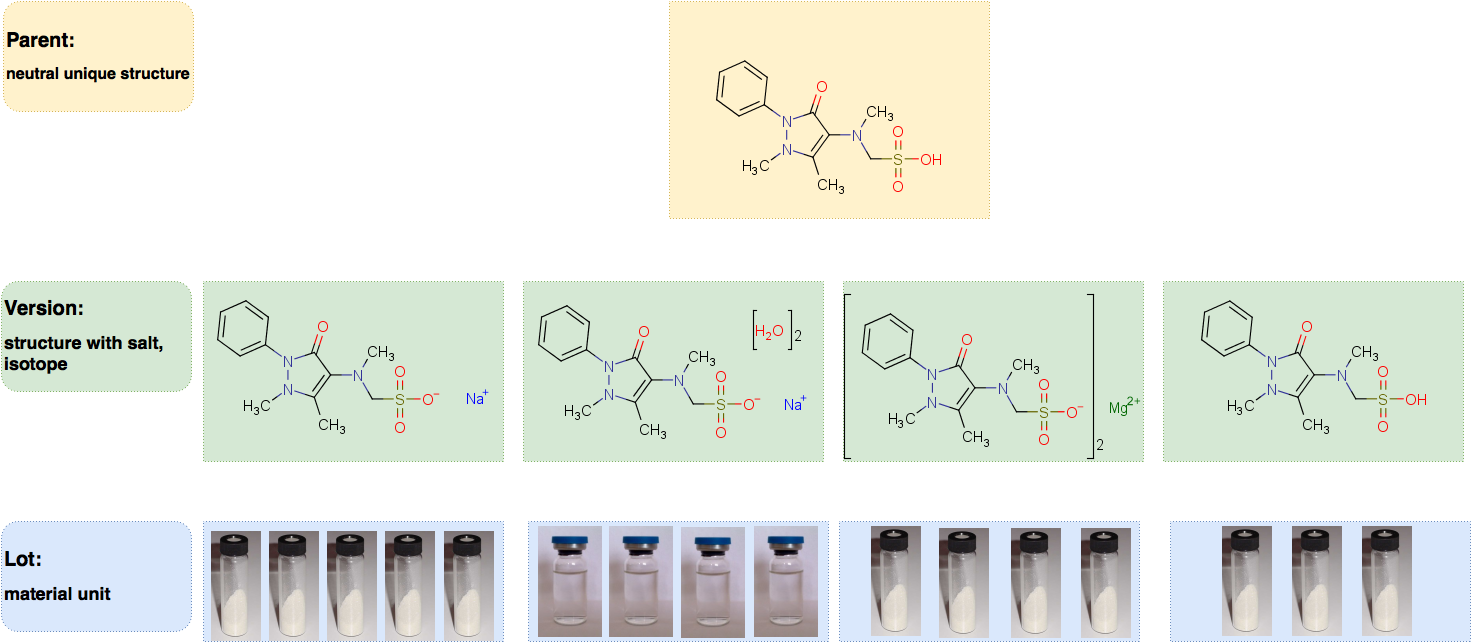

| The 3-layer representation. Example of metamizole |
To login into the application please use the credentials provided by the system administrator:
 |
|---|

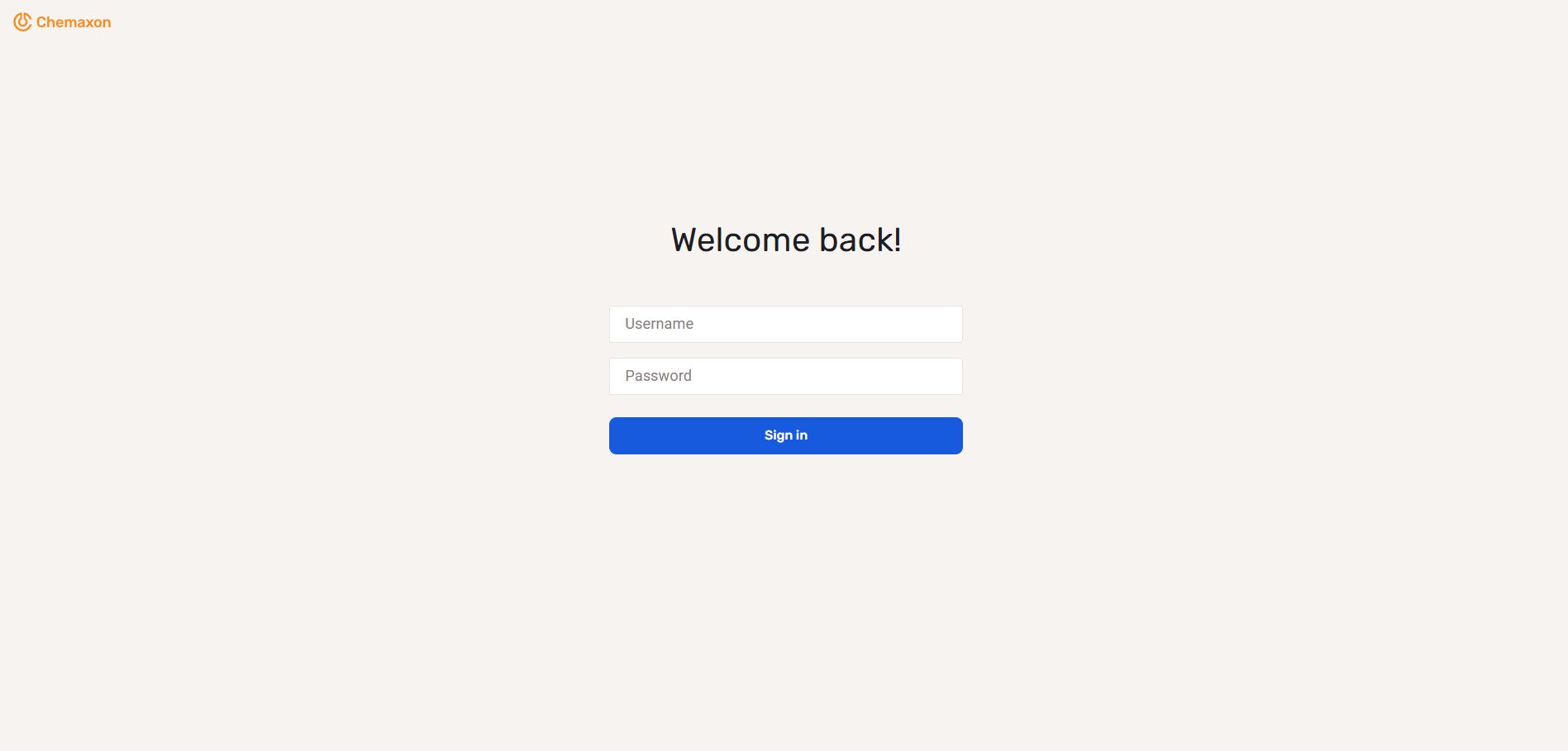

| The Login page |
The Dashboard page will be displayed after login.
 |
|---|

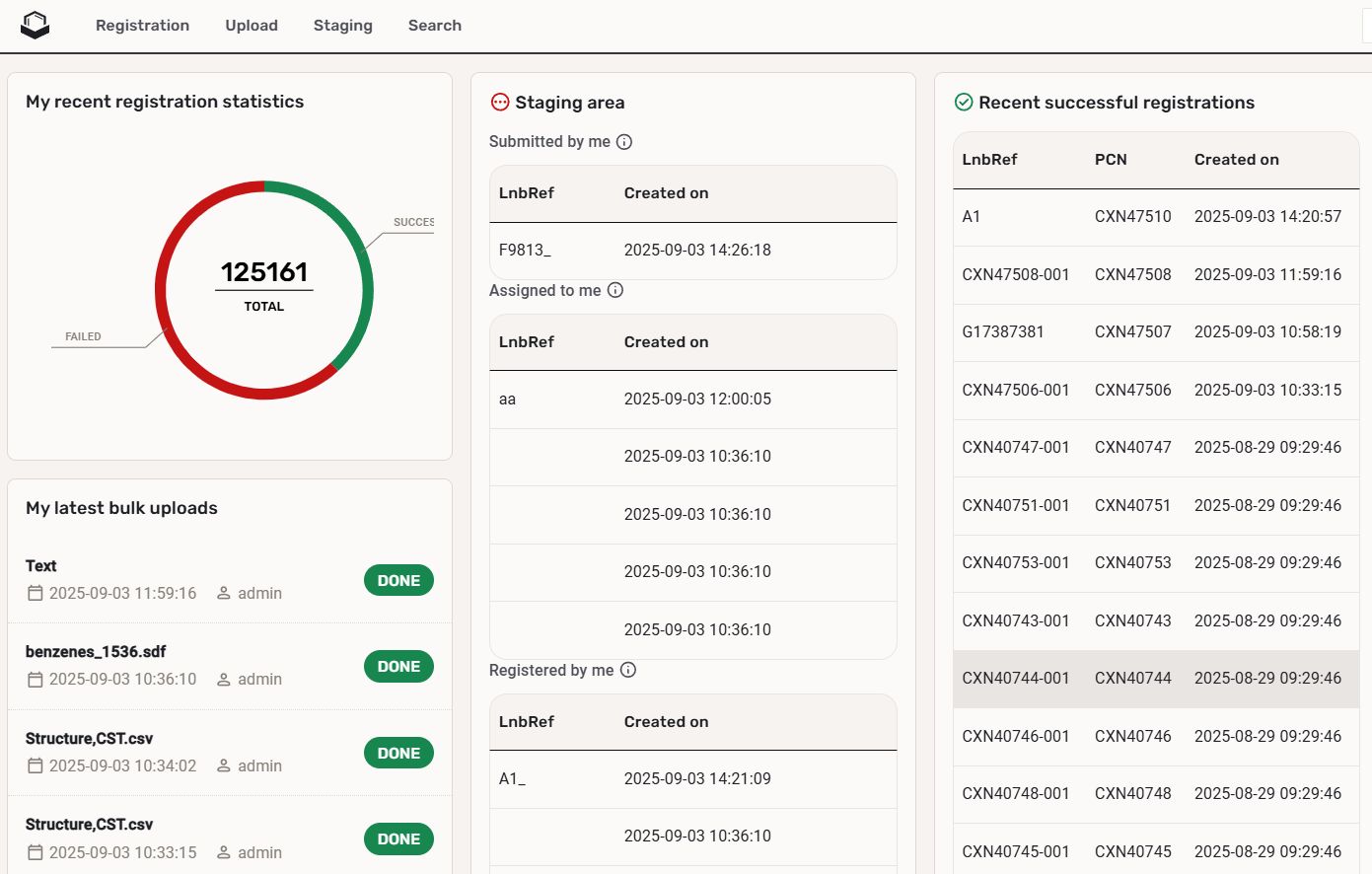

| The Dashboard page |
In order to register a compound, the user must click on the Registration navigation bar located on the top left side. The registrations can be initiated from the Registration page.
