Editor selection in JChem for Office Lite

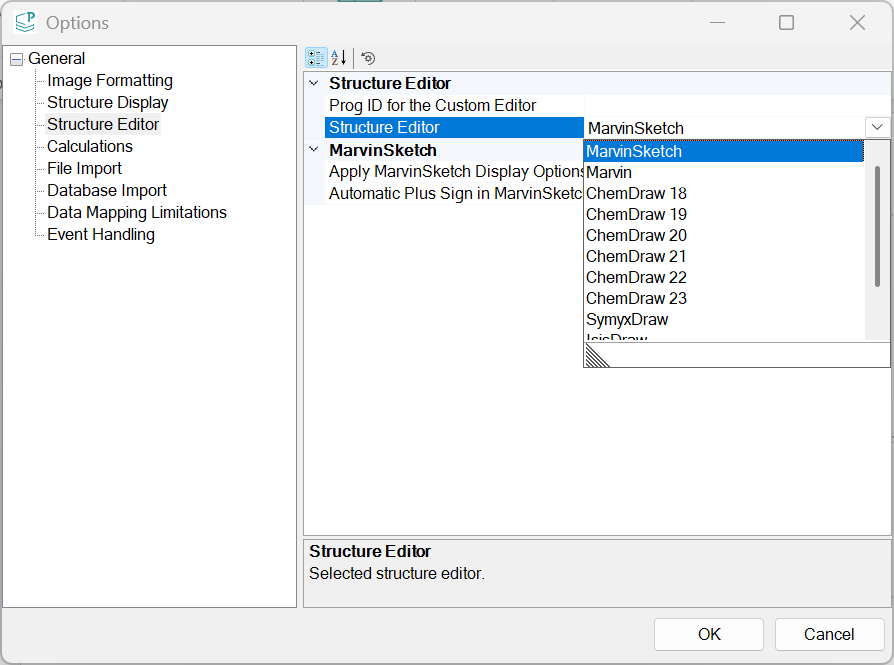

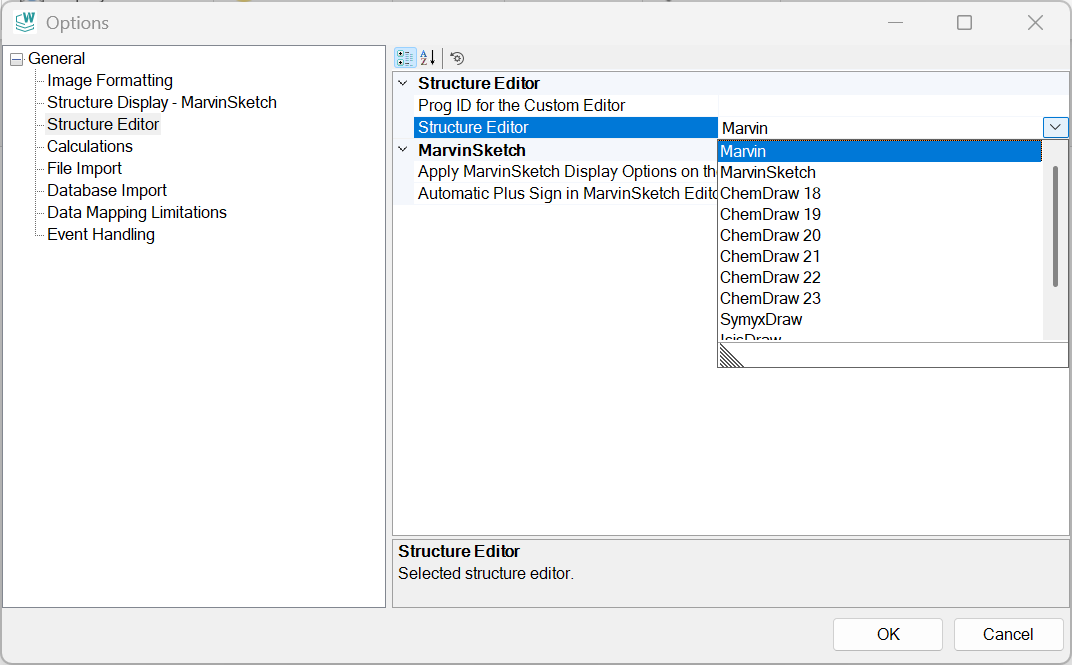

Changing the structure editor in JChem for Office Lite works the same way as in JChem for Office. Go to JChem ribbon > Options > Structure Editor, then select your preferred editor from the dropdown list.

Supported Editors:

  • Marvin
  • MarvinSketch

Rendering structures:

By default, pasted structures are rendered according to their file format or the selected chemical editor.

Typical cases include:

  • CXON - Marvin
  • MRV - MarvinSketch
  • CDX/CDXML - ChemDraw

If user.config files from a previous installation are detected, the stored renderer and editor settings will be applied automatically in Word, PowerPoint, and Outlook.

The user.config files can be found in the following locations:

C:\Users\<Current User>\AppData\Roaming\Chemaxon\JChem for Outlook

C:\Users\<Current User>\AppData\Roaming\Chemaxon\JChem for PowerPoint

C:\Users\<Current User>\AppData\Roaming\Chemaxon\JChem for Word

C:\Users\<Current User>\AppData\Local\Microsoft_Corporation\JChemForOutlook.vsto_vsto_Path_otgxb0fych3j2qkqv0eztcinbbbotaf1\<Build Version>

C:\Users\<Current User>\AppData\Local\Microsoft_Corporation\JChemForPowerPoint.vsto_v_Path_ekpbzjafv2drri5srphx40rdemxeglss\<Build Version>

C:\Users\<Current User>\AppData\Local\Microsoft_Corporation\JChemForWord.vsto_vstoloc_Path_pvhtd1e1ppkkzfxje0m4cjzlmgt3likm\<Build Version>

If settings.xml file from a previous installation are detected, the stored editor settings will be applied automatically in Excel.

The settings.xml file can be found in the following location:

C:\Users\<Current User>\AppData\Roaming\Chemaxon\JChem for Excel
